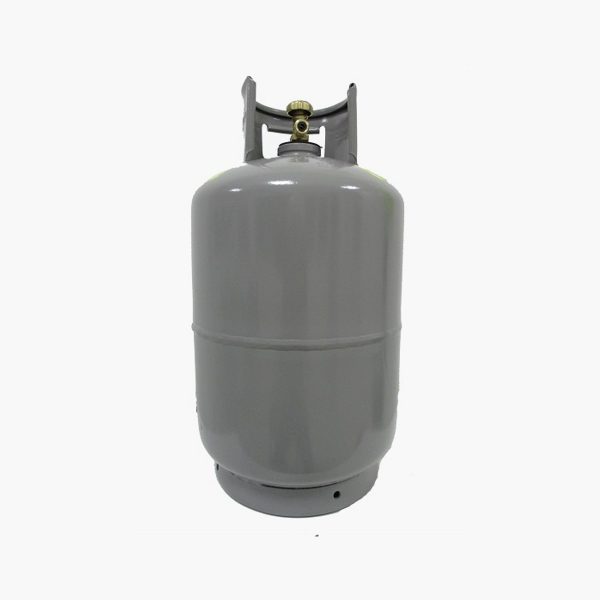

Cylinder design:

Welded steel transportable and refillable bottle for liquefied petroleum gas in two pieces, heat-treated at a temperature between 910°C and 940°C.



Technical specifications:

• Nature of gas transported: LPG
• Commercial cylinder load: 13 Kg
• Water capacity of the cylinder: 28.4 Liters
• Working pressure(PS): 20 Bar
• Test pressure (PH): 30 Bar



Basic metal mechanical characteristics:

• Tensile strength: 410 MPa Rm 500MPa
• Maximum yield strength Min= 265 MPa
• Elongation 24%



Cylinder finish:

Shot blasted cylinder, métallized with a layer of zinc and painted in electrostatic powder in the oven (RAL at the customer’s request).
